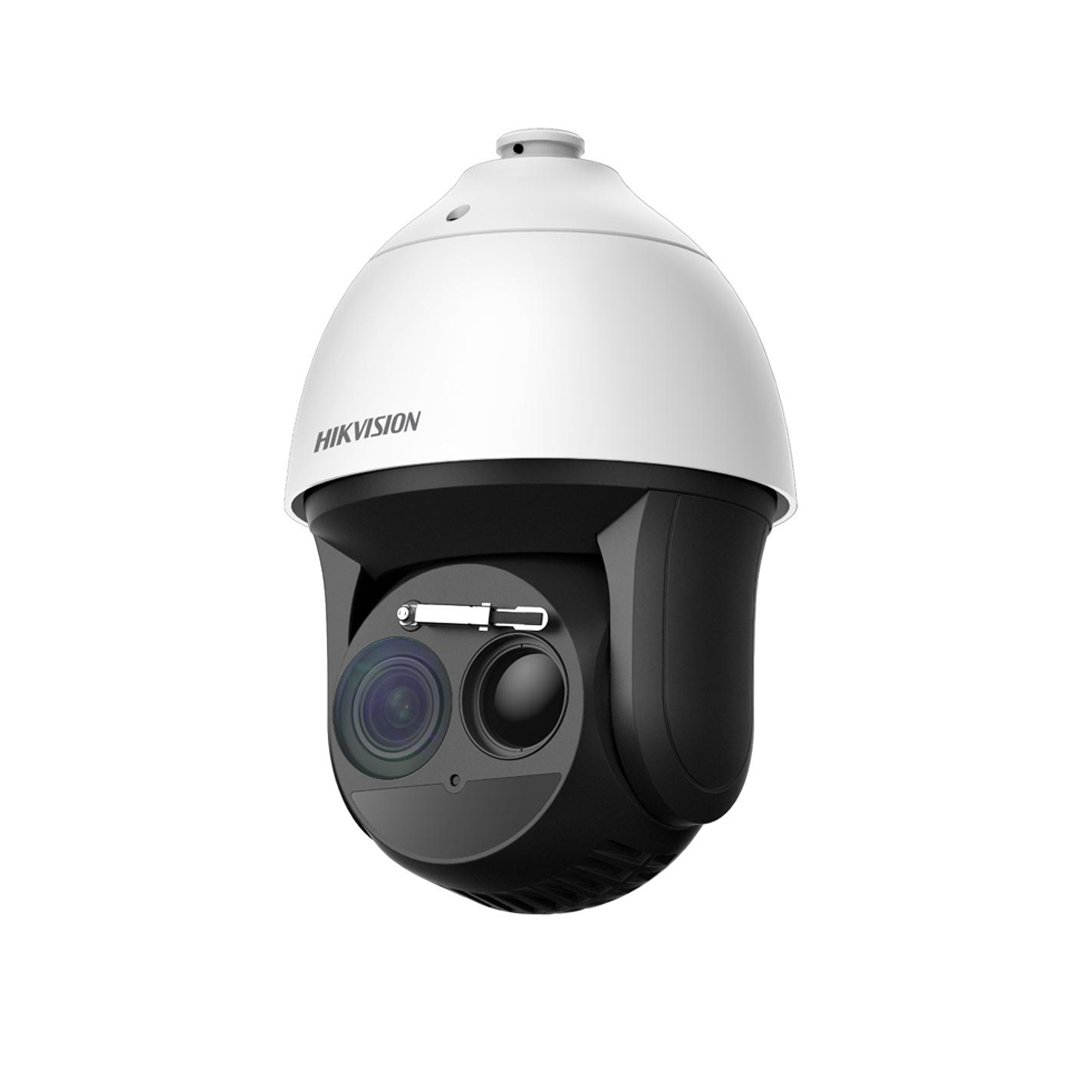

دوربین مداربسته چرخشی تحت شبکه حرارتی 4 مگاپیکسلی هایک ویژن مدل DS-2TD4137T-25/W

دوربین مداربسته چرخشی تحت شبکه حرارتی 4 مگاپیکسلی هایک ویژن مدل DS-2TD4137T-25/WDS-2TD4137T-25/W


تماس بگیرید

بررسی اجمالی محصول

  • دوربین حرارتی چرخشی (اسپید دام) تحت شبکه مناسب برای نظارت محیطی، صنعتی و تشخیص سریع آتش‌سوزی و دود
  • لنز دوگانه (رنگی و حرارتی) با نمایش هم‌زمان تصویر رنگی و گرمایی
  • اندازه‌گیری دقیق دما از -20 تا +550 درجه سانتی‌گراد با دقت ±2°C
  • تشخیص هوشمند آتش، دود، نفوذ و عبور از خط فرضی
  • زوم اپتیکال قدرتمند 40× و زوم دیجیتال حرارتی ×8
  • کیفیت تصویر نوری 4 مگاپیکسل + تصویر حرارتی تا Full HD (1920×1080)
  • پشتیبانی از PoE (Hi-PoE) و طراحی مقاوم با استاندارد IP66
  • قابلیت ضبط مستقل با کارت حافظه تا 256 گیگابایت و ارسال هشدار هوشمند به موبایل یا مرکز کنترل

مشخصات فنی : DS-2TD4137T-25/W

برند

هایک ویژن

کیفیت تصویر

اپتیکال:2688 × 1520, 4 مگاپیکسل, حرارتی: 384 × 288 (the resolution of output image is 1920 × 1080)

لنز

زوم اپتیکال 40 برابری, لنز اپتیکال: 6 تا 240 میلی متر, لنز حرارتی: 25 میلی متر

سایزحسگر تصویر

اپتیکال: 1/1.8", حرارتی: Vanadium Oxide Uncooled Focal Plane Arrays

زاویه دید

اپتیکال:33.7 درجه, حرارتی:11.2 درجه

دید در شب

تا 200 متر مادون قرمز

قابلیت های تشخیص

آژیر, قابلیت تشخیص آتش, قابلیت تشخیص انسان, قابلیت تشخیص حرکت, قابلیت تشخیص دود, قابلیت تشخیص عبور از خط فرضی

اسلات کارت حافظه

256 گیگابایت

فشرده سازی تصویر

Main stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG

ابعاد

266.6 میلی متر-410میلی متر- 198.6 میلی متر

وزن

9کیلوگرم

سیستم عامل

ویندوز، اندروید و آیفون

محتویات جعبه

آداپتور, پایه نصب, کابل برق

Image Sensor
  • Optical Module:1/1.8" Progressive Scan CMOS
  • Thermal Module: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution
  • Optical Module: 2688 × 1520, 4 MP
  • Thermal Module: 384 × 288 (the resolution of output image is 1920 × 1080)
Focal Length
  • Optical Module: 6-240 mm, 40x
  • Thermal Module: 25 mm
Field of View
  • Optical Module: 56.6 ° × 33.7 ° (H × V) to 1.8 ° × 1.0 ° (H × V)
  • Thermal Module: 14.9° × 11.2° (H × V)
Max. Aperture
  • F1.0
Thermal Module

Pixel Pitch

17 μm

Spectral Range

8 μm to 14 μm

NETD

≤ 35 mK (@25° C, F# = 1.0)

IFOV

0.68 mrad

Min. Focusing Distance

1.5 m

Digital Zoom

×2, ×4, ×8

Optical Module

Min. Illumination

Color: 0.005 Lux @ (F1.3,AGC ON), B/W: 0.001 Lux @ (F1.3,AGC ON)

Shutter Speed

1 s to 1/30,000 s

WDR
  • 120 dB
Optical Defog

Yes

Image Effect

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Supported in white hot and black hot mode

PTZ

Movement Range

Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)

Pan Speed

Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s

Tilt Speed

Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s

Proportional Zoom

Yes

Presets

300 in total, 273 are configurable.

Patrol Scan

8; Up to 32 Presets Per Patrol

Pattern Scan

4; More Than 10 Minutes Per Pattern

Power Off Memory

Yes

Park

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PT Status

Turn On/Turn Off

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator

IR Distance

Up to 200 m

IR Intensity and Angle

Automatically adjusted

Smart Function

VCA

Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene

Temperature Measurement

Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Temperature Accuracy

Max (± 2° C, ± 2%)

Fire Detection

Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream

Optical channel: 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)-60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720), Thermal channel:50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)

Sub-stream

Optical channe:50 Hz:25 fps (704 × 576, 352 × 288) -60 Hz:30 fps (704 × 576, 352 × 288), Thermal channel:50 fps (704 × 576, 640 × 512, 384 × 288)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG

Audio Compression
  • G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
  • -
Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed) : Internet Explorer 11, Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +, Local service : Chrome 57.0 +, Firefox 52.0 +

Interface

Alarm Input

7-ch inputs (0-5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage

Audio Input

1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear Level; Impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M Self-adaptive Ethernet interface., 1, RS-485 interface

Analog Video Output

1.0 V [p-p]/75 Ω

General
  • -
Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,

Power Supply
  • 24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%, Hi-PoE
Power Consumption
  • 65W Max
Working Temperature/Humidity

– 40° C to 65° C (- 40° F to 149° F) 95% or less

Wiper

Yes

Protection Level

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions

266.6 mm × 410 mm × 198.6 mm (10.5 " × 16.15 " × 7.82 ")

Weight

Approx. 9 kg (19.84 lb)

Detection Range Table/Smart Function Range

VCA Range for Humans

175 m

VCA Range for Vehicles

525 m

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)

Safety

CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005

Environment

CE-RoHS:2011/65/EU, WEEE: 2012/19/EU, Reach:Regulation(EC) No 1907/2006

Protection
  • IP66: IEC 60529-2013
